Raws li ib tug kws plywood machinery chaw tsim tshuaj paus, peb muab ruaj khov, npaum, thiab customizable kub xovxwm tshuab rau ntau lawm muaj peev xwm.

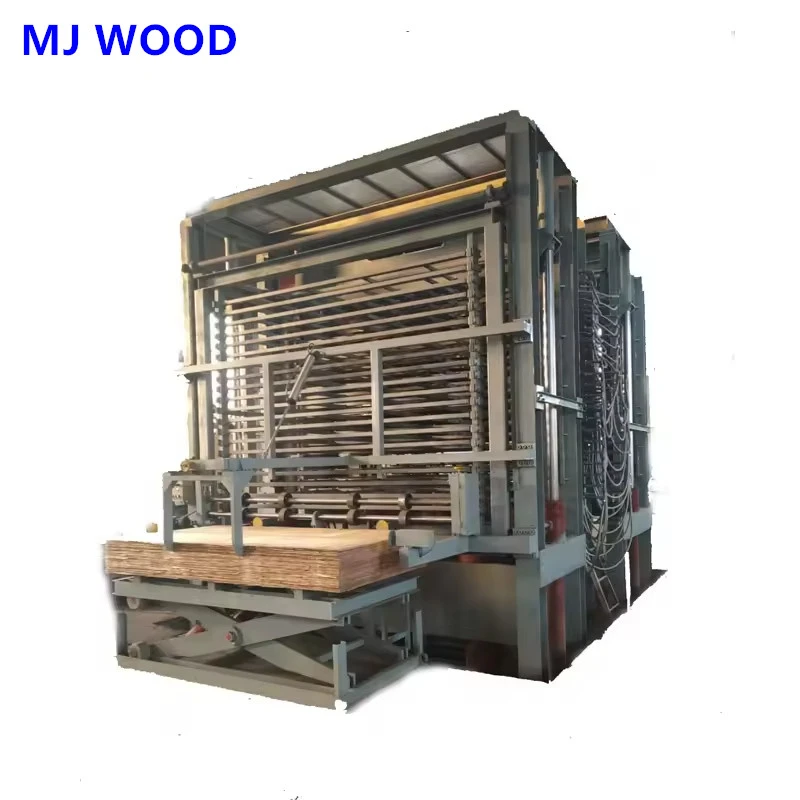

Product Overview
Cov xovxwm kub rau plywood yog ib qho ntawm cov tshuab tseem ceeb tshaj plaws hauv cov kab ntau lawm. Nws yog lub luag haujlwm rau kev sib txuas ntau cov veneer txheej ua ke nyob rau hauv kev tswj qhov kub thiab txias los tsim cov plywood muaj zog thiab ruaj khov.
Tom qab txias nias thiab kho cov txheej txheem, cov txheej txheem kho plywood yuav raug xa mus rau cov xovxwm kub kub rau Plywood. Nws yuav siv sij hawm 5-60 feeb nyob ntawm board thickness. Tom qab kub nias, cov neeg ua haujlwm yuav ua qhov thib ob lub sijhawm kho qhov tsis xws luag. Lub rooj tsavxwm yuav muab khaws cia rau hauv ib nrab cov khoom cia cov sij hawm kom txias thiab khaws cia.
Kev ua haujlwm ntawm cov xovxwm kub yog ncaj qha ntsig txog kev tsim khoom zoo ntawm cov plywood, yog li nws yog qhov tseem ceeb tshwj xeeb los xaiv lub tshuab zoo.
Peb tuaj yeem tsim thiab tsim txhua qhov loj me raws li cov neeg siv khoom xav tau.
Txais tos nug nrog cov lus qhia txog koj cov khoom npaj.
Qhov Zoo Tshaj Plaws
High Pressure & Uniform Thaum tshav kub kub Distribution
Advanced hydraulic system thiab optimized cua sov daim hlau xyuas kom meej txawm tias siab thiab kub nyob rau hauv tag nrho cov txheej.
Stable Bonding & Superior Vaj Huam Sib Luag muaj zog
Kev tswj xyuas qhov tseeb ntawm lub sijhawm nias, qhov kub thiab txias, thiab kev ua haujlwm siab txhim kho cov nplaum nplaum thiab lub vaj huam sib luag durability.
Zog-Kev Tsim Nyog
Optimized thermal qauv txo cov cua sov poob thiab txhim kho kev siv hluav taws xob efficiency.
Hnyav-Lub luag haujlwm rau kev ua haujlwm tsis tu ncua
Cov ncej txhawb nqa thiab cov khoom zoo hydraulic ua kom lub sijhawm ntev - kev ua haujlwm ruaj khov hauv kev lag luam ib puag ncig.
Yooj yim Configuration Options
Muaj nyob rau hauv qhov sib txawv nruab hnub nrig qhib, siab muaj peev xwm, thiab cua sov tshuab kom haum rau ntau yam kev xav tau.
Daim ntawv thov
- Plywood manufacturing
- Zaj duab xis ntsib plywood ntau lawm
- Rooj tog panels
- Ntoo- raws li cov kab ntau lawm
|
Specification ntawm Kub Xovxwm rau Plywood |
|||
|
Lub siab, ua haujlwm loj, ua haujlwm siab tuaj yeem ua raws li tus neeg yuav tsum tau ua. |
|||
|
Cov qauv |
PEB 48-1560 |
PEB 48-2060 |
PEB 48-3080 |
|
Max. Ua Haujlwm Siab |
600T |
600T |
800T |
|
Cov txheej txheem ua haujlwm |
15 |
20 |
30 |
|
Qhov nrug nruab nrab ntawm txhua txheej |
70 hli |
70 hli |
70 hli |
|
Kub Platen Loj |
1370 * 2700 * 52 hli |
1370 * 2700 * 52 hli |
1370 * 2700 * 52 hli |
|
Kub Platen Quantity |
16 pcs |
21 pcs |
31 pcs |
|
Lub tog raj kheej |
400mm * 1050mm * 2pcs |
400mm * 1400mm * 2pcs |
320mm * 2100mm * 4pcs |
|
Lub cev muaj zog |
11 KW+7.5KW |
15 KW+7.5KW |
22 KW+7.5KW |
|
Tsis tshua muaj siab Pump |
16ML plunger twj tso kua mis |
16ML plunger twj tso kua mis |
16ML vane twj tso kua mis |
|
High Pressure Pump |
237L vane twj |
255L vane twj tso kua mis |
94l cav |
|
Tswj System |
PLC tswj tsis siv neeg |
PLC tswj tsis siv neeg |
PLC tswj tsis siv neeg |
|
Main Ncej Thickness |
40 mm |
40 mm |
45mm ib |
|
Up, Nruab Nrab, Qab Beam Qhov siab |
900mm, 400mm, 900mm |
900mm, 400mm, 900mm |
900mm, 400mm, 900mm |
|
Kem Dav |
400 hli |
400 hli |
400 hli |
Quality Control & Manufacturing
Txhua lub xovxwm kub rau plywood yog kuaj rau hydraulic siab, kub uniformity, thiab kev ua haujlwm ruaj khov ua ntej xa khoom kom ntseeg tau tias kev ua tau zoo.
Vim Li Cas Xaiv Peb
Professional plywood machinery chaw tsim tshuaj paus
Kev ruaj khov zoo thiab tus nqi sib tw
Kev cai daws teeb meem rau kev lag luam thoob ntiaj teb
Technical thiab tom qab - kev muag khoom
Tiv tauj peb
Tiv tauj peb hnub no rau cov xovxwm kub rau plywood nqe, kev paub meej, thiab cov kev daws teeb meem customized plywood ntau lawm.
